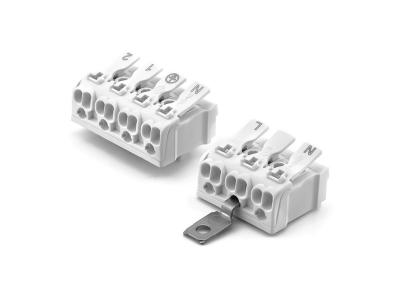

Aydınlatma, Elektrikli Bisiklet, vb için 2-5 pinli Su Geçirmez Tel Konnektör

Ürün Açıklaması: GH0923 2-5 pin, LED Aydınlatma Klemens, Şerit Konnektör 923, UL VDE, itme kablosu konektörü Mülk Detayları: 1. Malzemeler: 1.1 Muhafaza: LCP UL94 V-0 1.2 Terminaller: Bakır Alaşım 2. Kaplama: Terminaller: Mat 3. Elektrik performansı: 3.1 Voltaj Nominal: 300V (AC/DC) 3.2 Akım Anma: 16A 3.3 İzolasyon Direnci: 100MΩ min 3.4 Dielektrik dayanma gerilimi: 500V AC R.M.S/1m 4. Çevresel Karakteristik 4.1 Depolama sıcaklığı aralığı: -10℃~+50℃ Yarı yıl 4.2 Çalışma sıcaklığı aralığı: -40℃~+105℃ 5. RoHS uyumlu Özellikler ve Avantajlar: Güç kaynağı terminal modülü, lambaları ve diğer ekipmanları bağlamak için kullanılır. Aydınlatma, ev aletleri vb. için uygundurlar ve 0,75 ila 2,5 mm2 tek telli, çok telli ve ince çok telli kabloları bağlayabilirler. Çeşitli polar yamalar ve kelepçeler mevcuttur Çeşitli alt tip: T/J/düz dipli. Başvuru: aydınlatma, ev aletleri vb. Sertifika: GHGM'de kalite kontrol birinci önceliğe sahiptir. Yönetim sistemi: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Üretim Kalite Kontrolü: UL, VDE, REACH, RoHS, IEC, CQC Buluş ve Patentler: ABD, Almanya, Japonya, Çin Paketleme ve Nakliye: Siparişlerinizin teslimat sırasında zarar görmemesi için en iyi ve güvenli ambalaj malzemesini seçiyoruz. Tape&real, PE Torba, Tüp, Tepsi gibi farklı ürünlere farklı paketleme yöntemi uygulanmaktadır. Bu ticari şartlar kabul edilebilir, EXW, FOB, CFR, CIF, vb.

Product Description:GH2061 Pin spacing 10.00 mm,  PCB terminal block, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit, PCB terminal block, Push-in CAGE CLAMP®Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 16A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Available in 2-24 pole configurationsCompact terminal strips without push-buttonsPush-in terminations of solid and ferruled conductorsTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsTerminal strips also available with spacers upon requestApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT025-QU Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：72.4*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：IEC: 800V/24A, UL:600V/20A4.   Wiring quantity：45.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT4-QU-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：77*35.3*6.2mm2.   Wiring capacity：0.2-6mm²(solid wire) / 0.2-4mm²(Stranded wire), 24-10AWG3.   Voltage/Current：4.   Wiring quantity：45.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Ürün Açıklaması: GH25D01 Sürgülü Anahtar Çift Kutuplu Çift Yönlü (DPDT), 5 konumlu, SMD/DIP sürgülü anahtar, 180° tutamak yönü Mülk Detayları: 1. Malzemeler: 1.1 Muhafaza: LCP UL94 V-0 1.2 Terminaller: Bakır Alaşım 2. Kaplama: Terminaller: Mat 3. Elektrik performansı: 3.1 Voltaj Nominal: 150V (AC/DC) 3.2 Akım Anma: 0.3A 3.3 İzolasyon Direnci: 100MΩ min 3.4 Dielektrik dayanma gerilimi: 500V AC R.M.S/1m 4. Çevresel Karakteristik 4.1 Depolama sıcaklığı aralığı: -10℃~+50℃ Yarı yıl 4.2 Çalışma sıcaklığı aralığı: -40℃~+105℃ 5. RoHS uyumlu Özellikler ve Avantajlar: Bu seri sürgülü anahtarlar, taşınabilir aletler, küçük ev aletleri ve zemin bakım ürünleri dahil olmak üzere çok çeşitli uygulamalarda kullanılmak üzere tasarlanmıştır. 250 Vac'de 6A yüksek akım derecesine sahiptirler, ancak yine de kompakt bir mahfaza içinde üretilirler. Başvuru: Çeşitli taşınabilir aletler, küçük ev aletleri ve zemin bakım ürünleri Baskılı Devre Kartı (PCB) Sertifika: GHGM'de kalite kontrol birinci önceliğe sahiptir. Yönetim sistemi: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Üretim Kalite Kontrolü: UL, VDE, REACH, RoHS, IEC, CQC Buluş ve Patentler: ABD, Almanya, Japonya, Çin Paketleme ve Nakliye: Siparişlerinizin teslimat sırasında zarar görmemesi için en iyi ve güvenli ambalaj malzemesini seçiyoruz. Tape&real, PE Torba, Tüp, Tepsi gibi farklı ürünlere farklı paketleme yöntemi uygulanmaktadır. Bu ticari şartlar kabul edilebilir, EXW, FOB, CFR, CIF, vb.

Ürün Açıklaması: F5008 düşük profilli LED ışık konektörü, 2pin AWG24, aralık 2.5mm, kablolama LED ampul ışık konektörü Mülk Detayları: 1. Malzemeler: 1.1 Muhafaza: LCP UL94 V-0 1.2 Terminaller: Bakır Alaşım 2. Kaplama: Terminaller: Nikel 50u" min. altı kaplamalı Lehim kuyruğunda kalay 80u" min 3. Elektrik performansı: 3.1 Voltaj Nominal: 275V (AC/DC) 3.2 Akım Anma: 1A 3.3 İzolasyon Direnci: 100MΩ min 3.4 Dielektrik dayanma gerilimi: 500V AC R.M.S/1m 3.5 Kontak Direnci: 60mΩ MAKS. (İlk) 100Ω MAKS. (Yaşam testinden sonra) 4. RoHS uyumlu 5. Çevresel Karakteristik 5.1 Depolama sıcaklığı aralığı: -10℃~+50℃ Yarı yıl 5.2 Çalışma sıcaklığı aralığı: -40℃~+105℃ Özellikler ve Avantajlar: Düşük profil, yerleşik gölgelemeyi en aza indirir Farklı uzunluklardaki klemens şeritleri, daha az sayıda varyant ve daha düşük üretim maliyetlerine izin veren herhangi bir kutup kaybetmeden monte edilebilir SMT lehimleme işlemine tam entegrasyon için bant ve makara ambalajında ​​teslimat Otomatik seç ve yerleştir montajı yoluyla önemli tasarruf potansiyeli Başvuru: LED ampul LED şerit ışık konektörü Baskılı Devre Kartı (PCB) Sertifika: GHGM'de kalite kontrol birinci önceliğe sahiptir. Yönetim sistemi: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Üretim Kalite Kontrolü: UL, VDE, REACH, RoHS, IEC, CQC Buluş ve Patentler: ABD, Almanya, Japonya, Çin Paketleme ve Nakliye: Siparişlerinizin teslimat sırasında zarar görmemesi için en iyi ve güvenli ambalaj malzemesini seçiyoruz. Tape&real, PE Torba, Tüp, Tepsi gibi farklı ürünlere farklı paketleme yöntemi uygulanmaktadır. Bu ticari şartlar kabul edilebilir, EXW, FOB, CFR, CIF, vb.

Product Description:GHPT4-QU Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：77*35.3*6.2mm2.   Wiring capacity：0.2-6mm²(solid wire) / 0.2-4mm²(Stranded wire), 24-10AWG3.   Voltage/Current：IEC: 800V/32A, UL:600V/30A4.   Wiring quantity：45.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

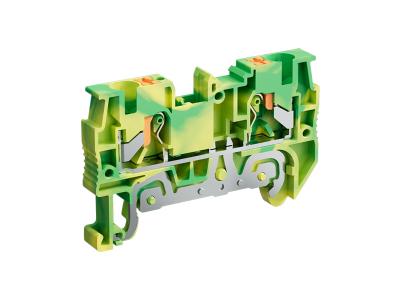

Product Description:GHPT025-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：48.6*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
